Промышленный управляемый L2/L4 коммутатор Planet, 4 порта 10/100/1000Мбит/с 802.3at PoE, 144Ватт, 4 порта 10/100/1000Мбит/с, 2 порта SFP 100/1000Мбит/с IGS-4215-4P4T2S купить в Москве оптом или в розницу в интернет магазине «Бурый Медведь»

Пн-Пт: с 10:00 до 18:00
Сб, Вс: выходной

0
0
0 В корзине пока пусто
Planet
Характеристики:
Страна
Тайвань (Китай)
Артикул товара
IGS-4215-4P4T2S
Код
154-133
Управляемый
Уровень коммутатора
2
Количество портов RJ45
8
Поддержка PoE
Да

Характеристики

Файлы
Инструкция Загрузить / Загрузить
Инструкция
Производитель Planet
Страна Тайвань (Китай)
Артикул товара IGS-4215-4P4T2S
Код 154-133
Установка на DIN-рейку
Количество портов RJ45 8
Скорость передачи данных по RJ45 1Гб/с
Управляемый Да
Уровень коммутатора 2
Поддержка PoE Да
Количество SFP слотов 2
Способ монтажа DIN-рейка
Дальность работы по медной линии, м 100
Скорость оптического интерфейса 1Гб/с
Тип оптического интерфейса SFP
Волокно Зависит от SFP модуля
Тип БП Встроенный
Поддержка PoE Extend Да
Стандарт PoE 802.3at
Мощность PoE на порт, Вт 30
Общая мощность PoE, Вт 144
Коммутационная матрица, Гб/с 20
Производительность, Mpps 14.8
Таблица MAC адресов 8000
Защита ESD 6KV DC
Основной БП 48~54V DC, 6A
Резервный БП 48~54V DC, 6A
Потребление, Вт 156
Условия эксплуатации от -40 до +75 С
Условия хранения от -40 до +85 С
Размеры, см 7.68 x 10.73 x 15.2
Вес, кг 1.35
Вес брутто, кг 1.35

Схема изделия

Physical Port

8-port 10/100/1000BASE-T Gigabit RJ45 copper with 4-port IEEE 802.3at/af PoE Injector (Port-1 to Port-4)
2 100/1000BASE-X mini-GBIC/SFP slots, SFP type auto detection
RJ45 console interface for switch basic management and setup


Power over Ethernet

Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
Backward compatible with IEEE 802.3af Power over Ethernet
Up to 4 ports of IEEE 802.3af/802.3at devices powered
Supports PoE power up to 36 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters in standard mode and 250m in extend mode
PoE management
Total PoE power budget control
Per port PoE function enable/disable
PoE port power feeding priority
Per PoE port power limitation
PD classification detection
PD alive-check
PoE schedule


Industrial Case & Installation

IP30 aluminum case
DIN-rail and wall-mount design
Supports -40 to 75 degrees C operating temperature
Supports ESD 6KV DC Ethernet protection

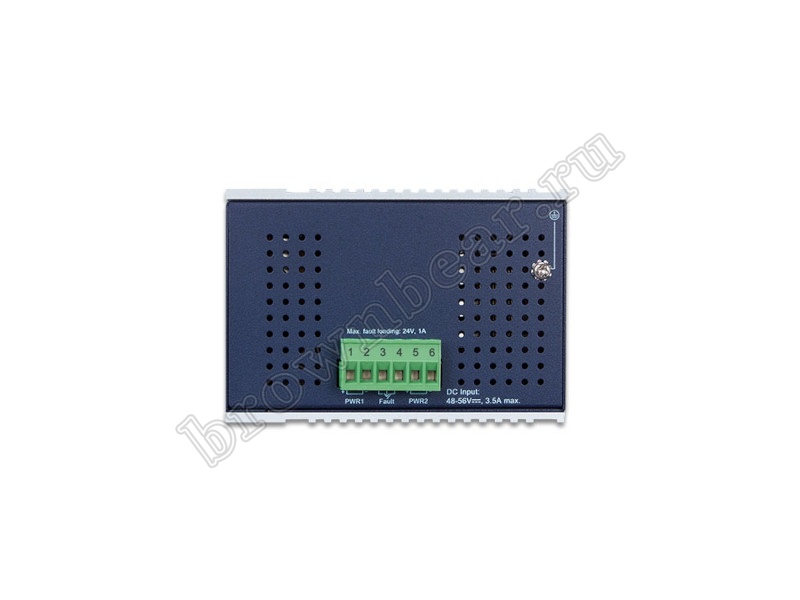

Redundant power design

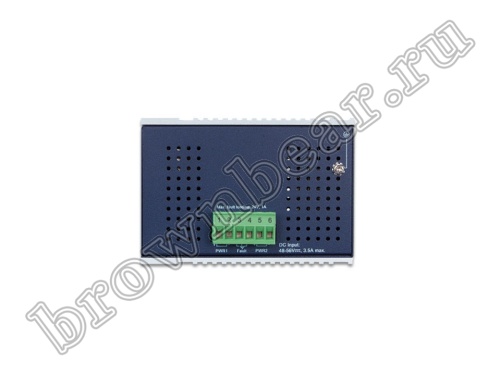

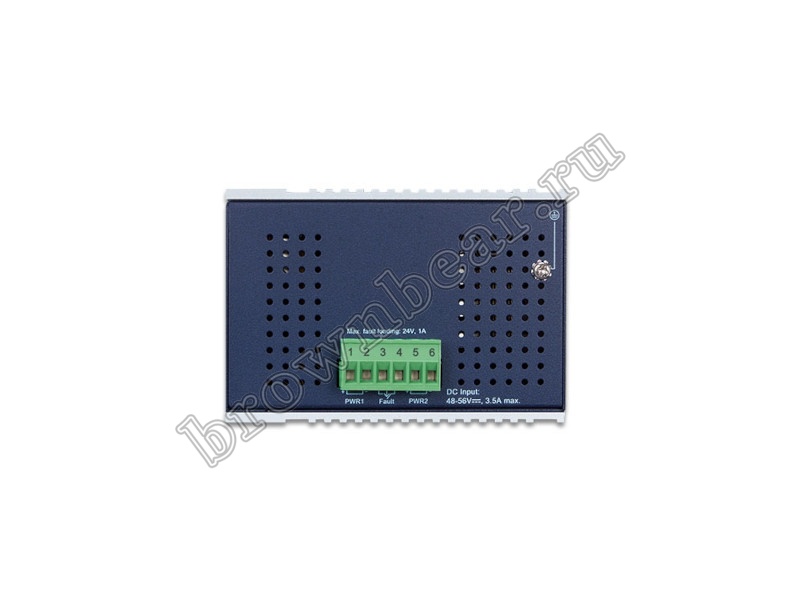

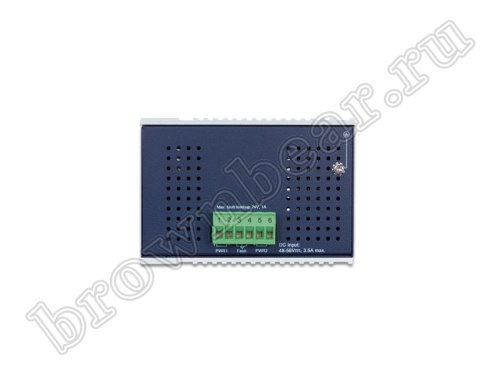

48V~56V DC wide power input with reverse polarity protection
Provides one relay output for power failure


Switching

Hardware based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
8K MAC address table size
10K jumbo frame
Automatic address learning and address aging
Supports CSMA/CD protocol


Layer 2 Features

Supports VLAN
IEEE 802.1Q tagged VLAN
Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
Protocol VLAN
Voice VLAN
Private VLAN (Protected port)
Management VLAN
GVRP
Supports Spanning Tree Protocol
STP (Spanning Tree Protocol)
RSTP (Rapid Spanning Tree Protocol)
MSTP (Multiple Spanning Tree Protocol)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
Supports Link Aggregation
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Maximum 4 trunk groups, up to 4 ports per trunk group
Provides port mirror (many-to-1)
Loop protection to avoid broadcast loops
Supports ERPS (Ethernet Ring Protection Switching)


Quality of Service

Ingress/Egress Rate Limit per port bandwidth control
Traffic classification
IEEE 802.1p CoS
TOS/DSCP/IP precedence of IPv4/IPv6 packets
Strict priority and Weighted Round Robin (WRR) CoS policies


Multicast

Supports IPv4 IGMP snooping v2, v3
Supports IPv6 MLD snooping v1, v2
IGMP querier mode support
IGMP snooping port filtering
MLD snooping port filtering


Security

Storm Control support
Broadcast/unknown unicast/unknown multicast
Authentication
IEEE 802.1X port-based network access authentication
Built-in RADIUS client to cooperate with the RADIUS servers
DHCP Option 82
RADIUS/TACACS+ authentication
Access Control List
IPv4/IPv6 IP-based ACL
IPv4/IPv6 IP-based ACE
MAC-based ACL
MAC-based ACE
MAC Security
Static MAC
MAC filtering
Port security for source MAC address entries filtering
DHCP snooping to filter distrusted DHCP messages
Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
IP source guard prevents IP spoofing attacks
DoS attack prevention


Management

IPv4 and IPv6 dual stack management
Switch Management Interface
Web switch management
Console/Telnet Command Line Interface
SNMP v1 and v2c switch management
SSHv2, TLSv1.2 and SNMPv3 secure access
SNMP Management
SNMP trap for interface Link Up and Link Down notification
Four RMON groups (history, statistics, alarms and events)
User privilege levels control
Built-in Trivial File Transfer Protocol (TFTP) client
Static and DHCP for IP address assignment
System Maintenance
Firmware upload/download via HTTP/TFTP
Configuration upload/download through HTTP/TFTP
Dual images
Hardware reset button for system reboot or reset to factory default
SNTP Network Time Protocol
Network Diagnostic
Cable diagnostics
ICMPv6/ICMPv4 Remote Ping
SFP-DDM (Digital Diagnostic Monitor)
Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
Event message logging to remote syslog server
PLANET Smart Discovery Utility for deployment management
PLANET NMS system and CloudViewer for deployment management

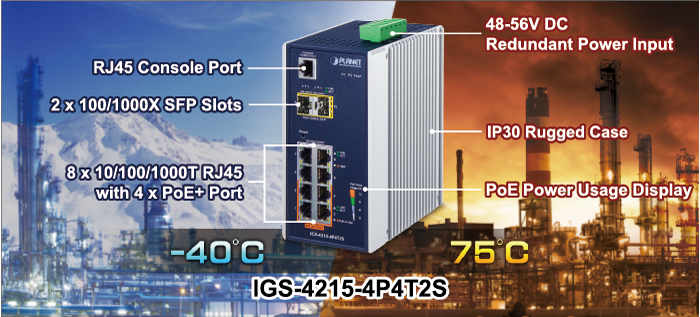

Ideal, Cost-effective, Manageable PoE Solution for Hardened Environment

Designed to be installed in heavy industrial demanding environments, the IGS-4215-4P4T2S is the new generation of PLANET Industrial-grade, DIN-rail type L2/L4 Managed Gigabit PoE+ Switch featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 4 10/100/1000BASE-T ports featuring 30-watt 802.3at PoE+, 4 additional Gigabit copper ports and another 2 extra 100/1000BASE-X SFP fiber slots for data and video uplink. The IGS-4215-4P4T2S is able to operate reliably, stably and quietly in any environment without affecting its performance. It comes with a total power budget of up to 144 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.

Cybersecurity Network Solution to Minimize Security Risks

The IGS-4215-4P4T2S supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.

Redundant Ring, Fast Recovery for Critical Network Applications

The IGS-4215-4P4T2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.

Built-in Unique PoE Functions for Powered Devices Management

As it is the managed PoE switch for surveillance, wireless and VoIP networks, the IGS-4215-4P4T2S features the following special PoE management functions:

?PD alive check
?Scheduled power recycling
?PoE schedule
?PoE usage monitoring
?PoE extension


Intelligent Powered Device Alive Check

The IGS-4215-4P4T2S can be configured to monitor connected PD (Powered Device) status in real time via ping action. Once the PD stops working and responding, the IGS-4215-4P4T2S will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.


Scheduled Power Recycling

The IGS-4215-4P4T2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

PoE Schedule for Energy Saving

Under the trend of energy saving worldwide and contributing to environmental protection, the IGS-4215-4P4T2S can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.

PoE Usage Monitoring and Intelligent LED Indicator for Real-time PoE Usage

Via the power usage chart in the web management interface, the IGS-4215-4P4T2S enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities. Moreover, the IGS-4215-4P4T2S helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. Called “PoE Power Usage”, the front panel of the IGS-4215-4P4T2S has four LED indicators of different power usages.

802.3at PoE+ Power and Ethernet Data Transmission Distance Extension

In the “Extend” operation mode, the IGS-4215-4P4T2S operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the IGS-4215-4P4T2S provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.

Environmentally Hardened Design

With the IP30 aluminum industrial case, the IGS-4215-4P4T2S provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioner. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-4215-4P4T2S can be placed in almost any difficult environment.

Robust Protection

The IGS-4215-4P4T2S provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

IPv6/IPv4 Dual Stack Management

Supporting both IPv6 and IPv4 protocols, the IGS-4215-4P4T2S helps the system integrators to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 network is set up.

Robust Layer 2 Features

The IGS-4215-4P4T2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Loop and BPDU Guard, IGMP Snooping, and MLD Snooping. Via the link aggregation, the IGS-4215-4P4T2S allows the operation of a high-speed trunk to combine with multiple ports such as a 16Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.

Efficient Traffic Control

The IGS-4215-4P4T2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.



Powerful Security

PLANET IGS-4215-4P4T2S offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.



Friendly and Secure Management

For efficient management, the IGS-4215-4P4T2S is equipped with Command line, Web and SNMP management interfaces.

?With the built-in Web-based management interface, the IGS-4215-4P4T2S offers an easy-to-use, platform-independent management and configuration facility.
?For text-based management, it can be accessed via Telnet and the console port.
?By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.


Moreover, the IGS-4215-4P4T2S offers secure remote management by supporting SSHv2, TLSv1.2 and SNMPv3 connections which encrypt the packet content at each session.

Flexibility and Long-distance Extension Solution

The two mini-GBIC slots built in the IGS-4215-4P4T2S support SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceivers to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Intelligent SFP Diagnosis Mechanism

The IGS-4215-4P4T2S supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Файлы

p31377.pdf Инструкция , 2.68 МБ
p31377.pdf Инструкция , 2.68 МБ
d31377.png Схема изделия, 383.84 КБ
Добавить отзыв
Ваша оценка:
Отправить отзыв
Цена с НДС:
54 425 руб от 1 шт
52 776 руб от 10 шт
Нет в наличии. Запросить
